MLOps Basics [Week 4]: Model Packaging – ONNX

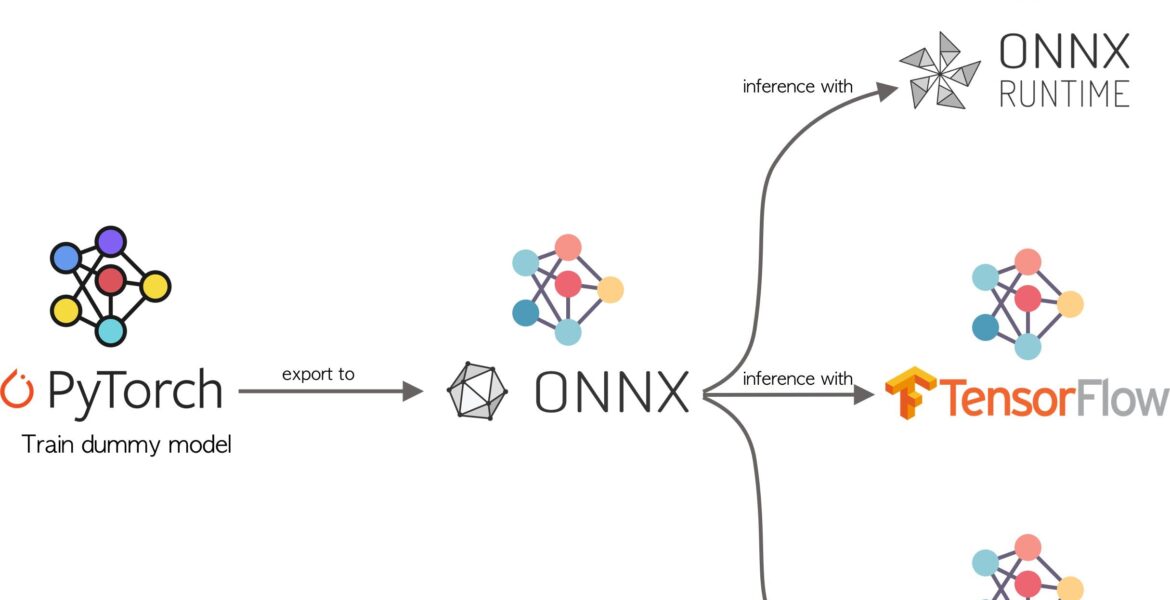

onnx_1

MLOps Basics [Week 4]: Model Packaging – ONNX

  • 📦 Model Packaging

    Why do we need model packaging? Models can be built using any machine learning framework available out there (sklearn, tensorflow, pytorch, etc.). We might want to deploy models in different environments like (mobile, web, raspberry pi) or want to run in a different framework (trained in pytorch, inference in tensorflow). A common file format to enable AI developers to use models with a variety of frameworks, tools, runtimes, and compilers will help a lot.

    This is achieved by a community project ONNX.

    In this post, I will be going through:

    • What is ONNX?
    •
    • How to convert a trained model to ONNX format?
    •
    • What is ONNX Runtime?
    •
    • How to run ONNX converted model in ONNX Runtime?
    •
    • Comparisons
    •

    What is ONNX?

    ONNX is an open format built to represent machine learning models.

    ONNX defines a common set of operators — the building blocks of machine learning and deep learning models — and a common file format to enable AI developers to use models with a variety of frameworks, tools, runtimes, and compilers.

    The ONNX format is the basis of an open ecosystem that makes AI more accessible and valuable to all:

    • developers can choose the right framework for their task
    • framework authors can focus on innovative enhancements
    • hardware vendors can streamline optimizations for neural network computations.

    Thus, ONNX is an open file format to store (trained) machine learning models/pipelines containing sufficient detail (regarding data types etc.) to move from one platform to another.

    Models in ONNX format can be easily deployed to various cloud platforms as well as to IoT devices.

    ⏳ How to convert a trained model to ONNX format?

    Since we are using Pytorch Lightning ⚡️ which is a wrapper around Vanilla Pytorch 🍦, there are two ways to convert the model into

    format.

    • Using onnx.export method in 🍦
    •
    • Using to_onnx method in ⚡️
    •

    Exporting using model using 🍦 Pytorch

    In order to convert the model into ONNX format, we need to specify some things:

    Trained model which needs to be converted

    model_path = f"{root_dir}/models/best-checkpoint.ckpt"
    cola_model = ColaModel.load_from_checkpoint(model_path)

    Sample input format (which the forward method takes with batch_size as 1)

    input_batch = next(iter(data_model.train_dataloader()))
    input_sample = {
    "input_ids": input_batch["input_ids"][0].unsqueeze(0),
    "attention_mask": input_batch["attention_mask"][0].unsqueeze(0),
    }
    • Input names, Output names
    • Dynamic axes (batch size dimension)

    Complete code looks like:

    torch.onnx.export(
    cola_model, # model being run
    (
    input_sample["input_ids"],
    input_sample["attention_mask"],
    ), # model input (or a tuple for multiple inputs)
    f"{root_dir}/models/model.onnx", # where to save the model
    export_params=True,
    opset_version=10,
    input_names=["input_ids", "attention_mask"], # the model's input names
    output_names=["output"], # the model's output names
    dynamic_axes={ # variable length axes
    "input_ids": {0: "batch_size"},
    "attention_mask": {0: "batch_size"},
    "output": {0: "batch_size"},
    },
    )

    Exporting using model using ⚡️ Pytorch Lightning

    Converting model to onnx with multi-input is not added yet. See the issue here

    Let’s see when the input is a single tensor.

    ⚡️ Module class comes with an in-built method to_onnx. Call that method with the necessary parameters:

    • Name of the onnx model
    • Input sample
    • Input names
    • Output names
    • Dynamic axes

    The code looks like:

    model.to_onnx(
    "model.onnx", # where to save the model
    input_sample, # input samples with atleast batch size as 1
    export_params=True,
    opset_version=10,
    input_names = ['input'], # Input names
    output_names = ['output'], # Output names
    dynamic_axes={ # variable length axes
    'input' : {0 : 'batch_size'},
    'output' : {0 : 'batch_size'},
    },
    )

    Now that the model is converted into

    format, Let’s load it to run the inference.

    👟 What is ONNX Runtime?

    ONNX Runtime is a performance-focused inference engine for ONNX models.

    ONNX Runtime was designed with a focus on performance and scalability in order to support heavy workloads in high-scale production scenarios. It also has extensibility options for compatibility with emerging hardware developments.

    ⚙️ Installation

    Install onnxruntime using the following command:

    pip install onnxruntime

    ONNX Runtime is supported on different Operating System (OS) and hardware (HW) platforms. The Execution Provider (EP) interface in ONNX Runtime enables easy integration with different HW accelerators.

    Check all the providers of ONNXRuntime using the command

    from onnxruntime import  get_all_providers
    print(get_all_providers())

    Sample output looks like:

    [
    'TensorrtExecutionProvider',
    'CUDAExecutionProvider',
    'MIGraphXExecutionProvider',
    'ROCMExecutionProvider',
    'OpenVINOExecutionProvider',
    'DnnlExecutionProvider',
    'NupharExecutionProvider',
    'VitisAIExecutionProvider',
    'NnapiExecutionProvider',
    'ArmNNExecutionProvider',
    'ACLExecutionProvider',
    'DmlExecutionProvider',
    'RknpuExecutionProvider',
    'CPUExecutionProvider'
    ]

    🏃‍♂️ How to run ONNX converted model in ONNX Runtime?

    In order to load the

    model, certain things needs to be done:

    Create Inference Session which will load the onnx model

    import onnxruntime as ort
    ort_session = ort.InferenceSession(onnx_model_path)

    Prepare the inputs for the session

    The input names should match the names used while creating the onnx model.

    ort_inputs = {
    "input_ids": np.expand_dims(processed["input_ids"], axis=0),
    "attention_mask": np.expand_dims(processed["attention_mask"], axis=0),
    }

    Run the session

    Run the inference session with the inputs

    ort_output = ort_session.run(None, ort_inputs)

    None will return all the outputs. If the model return multiple outputs, specifying the output name here will return only that output

    Complete code looks like:

    class ColaPredictor:
    def __init__(self, model_path):
    # creating the onnxruntime session
    self.ort_session = ort.InferenceSession(model_path)
    self.processor = DataModule()
    self.lables = ["unacceptable", "acceptable"]
        def predict(self, text):
    inference_sample = {"sentence": text}
    processed = self.processor.tokenize_data(inference_sample)
    # Preparing inputs
    ort_inputs = {
    "input_ids": np.expand_dims(processed["input_ids"], axis=0),
    "attention_mask": np.expand_dims(processed["attention_mask"], axis=0),
    }
    # Run the model (None = get all the outputs)
    ort_outs = self.ort_session.run(None, ort_inputs)
            # Normalising the outputs
    scores = softmax(ort_outs[0])[0]
    predictions = []
    for score, label in zip(scores, self.lables):
    predictions.append({"label": label, "score": score})
    return predictions

    This is the python api example for onnxruntime. For other language support refer to the documentation here

    ⏲ Comparisons

    Let’s compare the response time for both methods (standard pytorch inference, onnxruntime inference)

    Experiment: Running a sample of 10 sentences after a initial warmp-up(loading the model and running inference on 1 sentence)

    Inference times of Pytorch Model

    function:'predict' took: 0.00427 sec
    function:'predict' took: 0.00420 sec
    function:'predict' took: 0.00437 sec
    function:'predict' took: 0.00587 sec
    function:'predict' took: 0.00531 sec
    function:'predict' took: 0.00504 sec
    function:'predict' took: 0.00658 sec
    function:'predict' took: 0.00491 sec
    function:'predict' took: 0.00520 sec
    function:'predict' took: 0.00476 sec

    Inference times of ONNX format model

    function:'predict' took: 0.00144 sec
    function:'predict' took: 0.00128 sec
    function:'predict' took: 0.00132 sec
    function:'predict' took: 0.00136 sec
    function:'predict' took: 0.00134 sec
    function:'predict' took: 0.00132 sec
    function:'predict' took: 0.00144 sec
    function:'predict' took: 0.00132 sec
    function:'predict' took: 0.00172 sec
    function:'predict' took: 0.00187 sec

    As it is visible from the logs there is an improvment of 2-3x using ONNX + ONNXRuntime formant for inference compared to standard pytorch inference.

    🔚

    This concludes the post. These are only a few capabilities of

    format.

    I have used pytorch only. ONNX supports various frameworks. Look into the documentation here for more information

    Complete code for this post can also be found here: Github
